Current monitoring relay MRI25T

This range of current monitoring relays are used for the control of AC current signal in various industrial and domestic applications. The measuring part of the instrument is galvanic separated from the current connection terminals. The monitoring relays MRI range have one double-throw output contact up to 16 A.

  • measuring range 2.5 ... 25 A
  • output relay contact 16 A
  • universal supply input 89 ... 264 VAC
  • small dimensions 1-module on DIN rail
  • optical status LED signalization

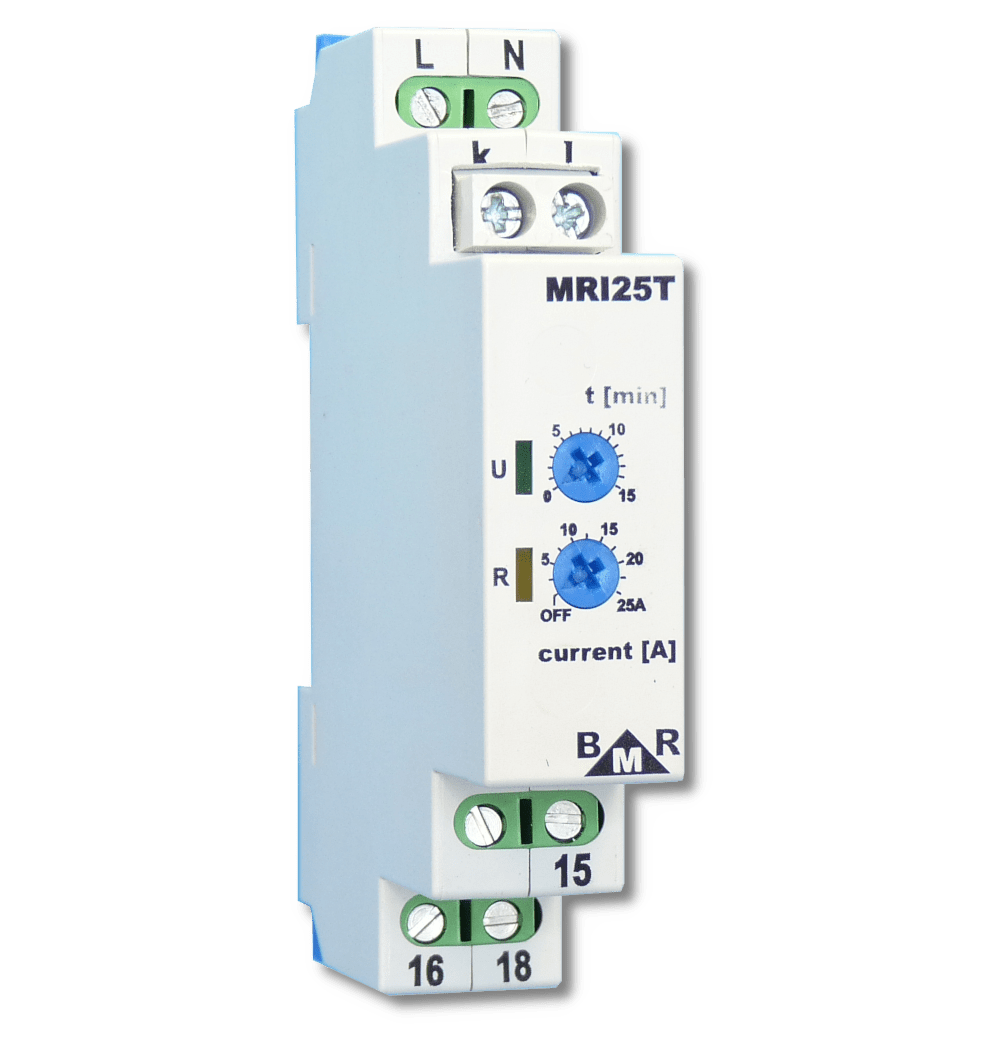

MRI25T

Function

If the set current level is exceeded, output relay will make connection. If the measured current level goes under the set level minus fix hysteresis 10%, output relay will disconnect. Hysteresis reduces relay bouncing at threshold limit of current values. Position OFF disables current measurement, output is closed and yellow LED is off. Contact no. 16 – 15 is closed.




Technical features

Parameter Value
supply voltage 89 ... 264 VAC
measuring current range 2.5 ... 25 A
Maximální zatižitelnost proudových svorek max 32 A
time setting range 0 ... 15 min
self consumption max. 1.5 VA
number and type of output contacts 1x changeover
nominal current 16 A
switching power max. AC 4000 VA
trigger current 30 A
nomina/max switching voltage 250 VAC / 440 VAC
mechanical lifetime 3 x 107
electrical lifetime 1 x 105 250 VAC, 8A
ambient temperature -20 ... +55 °C
working position any
mounting IEC 60715 (DIN 35)
protection degree IP 20
electrical strength 4 kV
conductor rigid and flexible max. 2 x 1.5 mm2; 1 x 2.5 mm2
weight 85 g
dimensions 90 x 18 x 65 mm
related standards IEC 60255-1
